clickhouse 执行sql的过程

标签（空格分隔）： clickhouse

上篇讲了clickhouse-server的启动过程，其中介绍了tcp Handler接收客户端请求，那么这篇我们着重来介绍接收SQL后，clickhouse是怎么执行这个过程的。

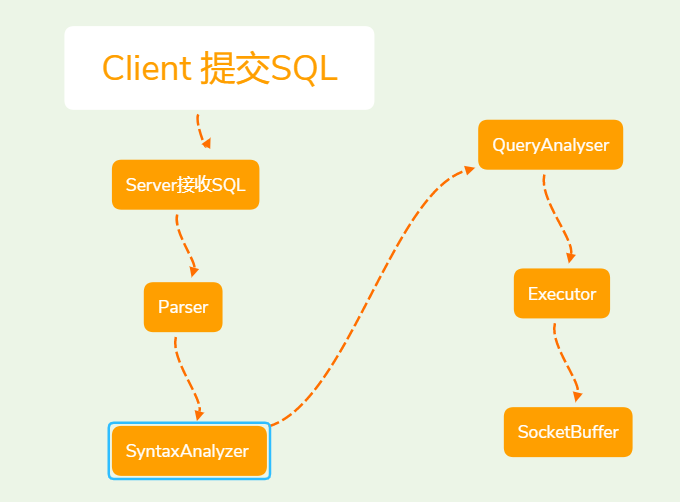

clickhouse的执行sql 的流程主要有如下图的几步：

接收SQL 的过程

runImpl(){
    receiveHello();
    sendHello(); //建立tcp 连接
    // ...初始化context 和state
    receivePacket() 接收数据包
    //state 对数据包进行初始化等操作
     state.io = executeQuery(state.query, *query_context, false, state.stage, may_have_embedded_data); //将state 和context接收到的sql执行
    判断是insert 还是select 最后选择是否输出到BlckIO到client
}

重点来研究这个executeQuery 的实现是src/interpreters/executeQuery.cpp
executeQueryImpl的主要方法如下：

 ast = parseQuery(parser, begin, end, "", max_query_size, settings.max_parser_depth); //解析sql 生成ast解析树
 auto interpreter = InterpreterFactory::get(ast, context, stage);//对ast 进行优化
 res = interpreter->execute(); //生成执行计划进执行excutor
 return std::make_tuple(ast, std::move(res)); //将执行的res 包装成为block输出流

跟踪parseQuery 的实现 进入tryParseQuery. 最关键的一个方法是

bool parse_res = parser.parse(token_iterator, res, expected);

parser 是IParse接口的实现类 IParse继承了IParserBase
查看parseImpl 的实现类 src/Parsers/ParseQuery

bool ParserQuery::parseImpl(Pos & pos, ASTPtr & node, Expected & expected)
{
    ParserQueryWithOutput query_with_output_p(enable_explain);
    ParserInsertQuery insert_p(end); //insert
    ParserUseQuery use_p; //use
    ParserSetQuery set_p; //set
    ParserSystemQuery system_p; //system
    ParserCreateUserQuery create_user_p; //用户操作
    ParserCreateRoleQuery create_role_p; //角色操作
    ParserCreateQuotaQuery create_quota_p; //资源限制操作
    ParserCreateRowPolicyQuery create_row_policy_p; //行权限操作
    ParserCreateSettingsProfileQuery create_settings_profile_p; //setting 操作
    ParserDropAccessEntityQuery drop_access_entity_p; //drop 权限操作
    ParserGrantQuery grant_p; //grant 操作
    ParserSetRoleQuery set_role_p; //设置角色操作
    ParserExternalDDLQuery external_ddl_p; //外部DDL操作

    bool res = query_with_output_p.parse(pos, node, expected)
        || insert_p.parse(pos, node, expected)
        || use_p.parse(pos, node, expected)
        || set_role_p.parse(pos, node, expected)
        || set_p.parse(pos, node, expected)
        || system_p.parse(pos, node, expected)
        || create_user_p.parse(pos, node, expected)
        || create_role_p.parse(pos, node, expected)
        || create_quota_p.parse(pos, node, expected)
        || create_row_policy_p.parse(pos, node, expected)
        || create_settings_profile_p.parse(pos, node, expected)
        || drop_access_entity_p.parse(pos, node, expected)
        || grant_p.parse(pos, node, expected)
        || external_ddl_p.parse(pos, node, expected);

    return res;
}

可以看到SQL的所有操作包含以上罗列的所有操作。
我们来看看src/Parsers/ParserSelectQuery.cpp ParseSelectQuery的具体实现

bool ParserSelectQuery::parseImpl(Pos & pos, ASTPtr & node, Expected & expected)
{
    auto select_query = std::make_shared<ASTSelectQuery>();
    node = select_query;

    ParserKeyword s_select("SELECT");
    ParserKeyword s_distinct("DISTINCT");
    ParserKeyword s_from("FROM");
    ParserKeyword s_prewhere("PREWHERE");
    ParserKeyword s_where("WHERE");
    ParserKeyword s_group_by("GROUP BY");
    ParserKeyword s_with("WITH");
    ParserKeyword s_totals("TOTALS");
    ParserKeyword s_having("HAVING");
    ParserKeyword s_order_by("ORDER BY");
    ParserKeyword s_limit("LIMIT");
    ParserKeyword s_settings("SETTINGS");
    ParserKeyword s_by("BY");
    ParserKeyword s_rollup("ROLLUP");
    ParserKeyword s_cube("CUBE");
    ParserKeyword s_top("TOP");
    ParserKeyword s_with_ties("WITH TIES");
    ParserKeyword s_offset("OFFSET");

    ParserNotEmptyExpressionList exp_list(false);
    ParserNotEmptyExpressionList exp_list_for_with_clause(false);
    ParserNotEmptyExpressionList exp_list_for_select_clause(true);    /// Allows aliases without AS keyword.
    ParserExpressionWithOptionalAlias exp_elem(false);
    ParserOrderByExpressionList order_list;

    ParserToken open_bracket(TokenType::OpeningRoundBracket);
    ParserToken close_bracket(TokenType::ClosingRoundBracket);

    ASTPtr with_expression_list;
    ASTPtr select_expression_list;
    ASTPtr tables;
    ASTPtr prewhere_expression;
    ASTPtr where_expression;
    ASTPtr group_expression_list;
    ASTPtr having_expression;
    ASTPtr order_expression_list;
    ASTPtr limit_by_length;
    ASTPtr limit_by_offset;
    ASTPtr limit_by_expression_list;
    ASTPtr limit_offset;
    ASTPtr limit_length;
    ASTPtr top_length;
    ASTPtr settings;

    /// WITH expr list 依次解析上边SQL 获取是否存在关键字的节点
   ....

    select_query->setExpression(ASTSelectQuery::Expression::WITH, std::move(with_expression_list));
    select_query->setExpression(ASTSelectQuery::Expression::SELECT, std::move(select_expression_list));
    select_query->setExpression(ASTSelectQuery::Expression::TABLES, std::move(tables));
    select_query->setExpression(ASTSelectQuery::Expression::PREWHERE, std::move(prewhere_expression));
    select_query->setExpression(ASTSelectQuery::Expression::WHERE, std::move(where_expression));
    select_query->setExpression(ASTSelectQuery::Expression::GROUP_BY, std::move(group_expression_list));
    select_query->setExpression(ASTSelectQuery::Expression::HAVING, std::move(having_expression));
    select_query->setExpression(ASTSelectQuery::Expression::ORDER_BY, std::move(order_expression_list));
    select_query->setExpression(ASTSelectQuery::Expression::LIMIT_BY_OFFSET, std::move(limit_by_offset));
    select_query->setExpression(ASTSelectQuery::Expression::LIMIT_BY_LENGTH, std::move(limit_by_length));
    select_query->setExpression(ASTSelectQuery::Expression::LIMIT_BY, std::move(limit_by_expression_list));
    select_query->setExpression(ASTSelectQuery::Expression::LIMIT_OFFSET, std::move(limit_offset));
    select_query->setExpression(ASTSelectQuery::Expression::LIMIT_LENGTH, std::move(limit_length));
    select_query->setExpression(ASTSelectQuery::Expression::SETTINGS, std::move(settings));
    return true;
}

可以看到解析select 的关键字组装成相应的AST节点。组装完成AST树之后就可以开始对树进行解优化了。

std::unique_ptr<IInterpreter> InterpreterFactory::get(ASTPtr & query, Context & context, QueryProcessingStage::Enum stage)
{
    ProfileEvents::increment(ProfileEvents::Query);

    if (query->as<ASTSelectQuery>())
    {
        /// This is internal part of ASTSelectWithUnionQuery.
        /// Even if there is SELECT without union, it is represented by ASTSelectWithUnionQuery with single ASTSelectQuery as a child.
        return std::make_unique<InterpreterSelectQuery>(query, context, SelectQueryOptions(stage));
    }
    else if (query->as<ASTSelectWithUnionQuery>())
    {
        ProfileEvents::increment(ProfileEvents::SelectQuery);
        return std::make_unique<InterpreterSelectWithUnionQuery>(query, context, SelectQueryOptions(stage));
    }
    else if (query->as<ASTInsertQuery>())
    {
        ProfileEvents::increment(ProfileEvents::InsertQuery);
        bool allow_materialized = static_cast<bool>(context.getSettingsRef().insert_allow_materialized_columns);
        return std::make_unique<InterpreterInsertQuery>(query, context, allow_materialized);
    }
    else if (query->as<ASTCreateQuery>())
    {
        return std::make_unique<InterpreterCreateQuery>(query, context);
    }
    else if (query->as<ASTDropQuery>())
    {
        return std::make_unique<InterpreterDropQuery>(query, context);
    }
    else if (query->as<ASTRenameQuery>())
    {
        return std::make_unique<InterpreterRenameQuery>(query, context);
    }
    else if (query->as<ASTShowTablesQuery>())
    {
        return std::make_unique<InterpreterShowTablesQuery>(query, context);
    }
    else if (query->as<ASTUseQuery>())
    {
        return std::make_unique<InterpreterUseQuery>(query, context);
    }
    else if (query->as<ASTSetQuery>())
    {
        /// readonly is checked inside InterpreterSetQuery
        return std::make_unique<InterpreterSetQuery>(query, context);
    }
    else if (query->as<ASTSetRoleQuery>())
    {
        return std::make_unique<InterpreterSetRoleQuery>(query, context);
    }
    else if (query->as<ASTOptimizeQuery>())
    {
        return std::make_unique<InterpreterOptimizeQuery>(query, context);
    }
    else if (query->as<ASTExistsTableQuery>())
    {
        return std::make_unique<InterpreterExistsQuery>(query, context);
    }
    else if (query->as<ASTExistsDictionaryQuery>())
    {
        return std::make_unique<InterpreterExistsQuery>(query, context);
    }
    else if (query->as<ASTShowCreateTableQuery>())
    {
        return std::make_unique<InterpreterShowCreateQuery>(query, context);
    }
    else if (query->as<ASTShowCreateDatabaseQuery>())
    {
        return std::make_unique<InterpreterShowCreateQuery>(query, context);
    }
    else if (query->as<ASTShowCreateDictionaryQuery>())
    {
        return std::make_unique<InterpreterShowCreateQuery>(query, context);
    }
    else if (query->as<ASTDescribeQuery>())
    {
        return std::make_unique<InterpreterDescribeQuery>(query, context);
    }
    else if (query->as<ASTExplainQuery>())
    {
        return std::make_unique<InterpreterExplainQuery>(query, context);
    }
    else if (query->as<ASTShowProcesslistQuery>())
    {
        return std::make_unique<InterpreterShowProcesslistQuery>(query, context);
    }
    else if (query->as<ASTAlterQuery>())
    {
        return std::make_unique<InterpreterAlterQuery>(query, context);
    }
    else if (query->as<ASTCheckQuery>())
    {
        return std::make_unique<InterpreterCheckQuery>(query, context);
    }
    else if (query->as<ASTKillQueryQuery>())
    {
        return std::make_unique<InterpreterKillQueryQuery>(query, context);
    }
    else if (query->as<ASTSystemQuery>())
    {
        return std::make_unique<InterpreterSystemQuery>(query, context);
    }
    else if (query->as<ASTWatchQuery>())
    {
        return std::make_unique<InterpreterWatchQuery>(query, context);
    }
    else if (query->as<ASTCreateUserQuery>())
    {
        return std::make_unique<InterpreterCreateUserQuery>(query, context);
    }
    else if (query->as<ASTCreateRoleQuery>())
    {
        return std::make_unique<InterpreterCreateRoleQuery>(query, context);
    }
    else if (query->as<ASTCreateQuotaQuery>())
    {
        return std::make_unique<InterpreterCreateQuotaQuery>(query, context);
    }
    else if (query->as<ASTCreateRowPolicyQuery>())
    {
        return std::make_unique<InterpreterCreateRowPolicyQuery>(query, context);
    }
    else if (query->as<ASTCreateSettingsProfileQuery>())
    {
        return std::make_unique<InterpreterCreateSettingsProfileQuery>(query, context);
    }
    else if (query->as<ASTDropAccessEntityQuery>())
    {
        return std::make_unique<InterpreterDropAccessEntityQuery>(query, context);
    }
    else if (query->as<ASTGrantQuery>())
    {
        return std::make_unique<InterpreterGrantQuery>(query, context);
    }
    else if (query->as<ASTShowCreateAccessEntityQuery>())
    {
        return std::make_unique<InterpreterShowCreateAccessEntityQuery>(query, context);
    }
    else if (query->as<ASTShowGrantsQuery>())
    {
        return std::make_unique<InterpreterShowGrantsQuery>(query, context);
    }
    else if (query->as<ASTShowAccessEntitiesQuery>())
    {
        return std::make_unique<InterpreterShowAccessEntitiesQuery>(query, context);
    }
    else if (query->as<ASTShowAccessQuery>())
    {
        return std::make_unique<InterpreterShowAccessQuery>(query, context);
    }
    else if (query->as<ASTShowPrivilegesQuery>())
    {
        return std::make_unique<InterpreterShowPrivilegesQuery>(query, context);
    }
    else if (query->as<ASTExternalDDLQuery>())
    {
        return std::make_unique<InterpreterExternalDDLQuery>(query, context);
    }
    else
    {
        throw Exception("Unknown type of query: " + query->getID(), ErrorCodes::UNKNOWN_TYPE_OF_QUERY);
    }
}

上边是根据ASt节点的类型生成对应的Interpreter 由其来具体执行对应AST的执行计划。来看看最复杂的select

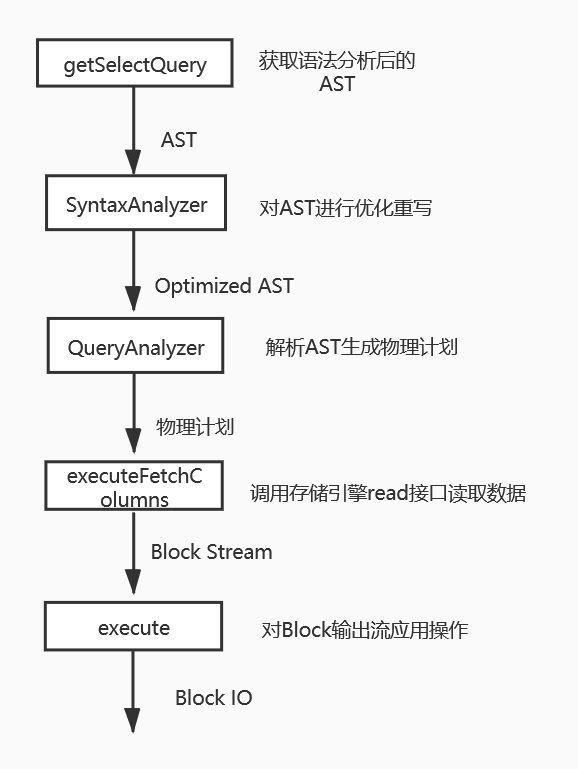

InterpreterSelectQuery:InterpreterSelectQuery() 的实现方法如下：

InterpreterSelectQuery::InterpreterSelectQuery(
    const ASTPtr & query_ptr_,
    const Context & context_,
    const BlockInputStreamPtr & input_,
    std::optional<Pipe> input_pipe_,
    const StoragePtr & storage_,
    const SelectQueryOptions & options_,
    const Names & required_result_column_names,
    const StorageMetadataPtr & metadata_snapshot_)
    : options(options_)
    /// NOTE: the query almost always should be cloned because it will be modified during analysis.
    , query_ptr(options.modify_inplace ? query_ptr_ : query_ptr_->clone())
    , context(std::make_shared<Context>(context_))
    , storage(storage_)
    , input(input_)
    , input_pipe(std::move(input_pipe_))
    , log(&Poco::Logger::get("InterpreterSelectQuery"))
    , metadata_snapshot(metadata_snapshot_)
{
    auto analyze = [&] (bool try_move_to_prewhere) //将prewhere下推对ast进行优化
    {

        syntax_analyzer_result = TreeRewriter(*context).analyzeSelect(
            query_ptr,
            TreeRewriterResult(source_header.getNamesAndTypesList(), storage, metadata_snapshot),
            options, joined_tables.tablesWithColumns(), required_result_column_names, table_join);
        query_analyzer = std::make_unique<SelectQueryExpressionAnalyzer>(
                query_ptr, syntax_analyzer_result, *context, metadata_snapshot,
                NameSet(required_result_column_names.begin(), required_result_column_names.end()),
                !options.only_analyze, options, std::move(subquery_for_sets));
}

重点TreeRewriter 对当前的的ast 进行的优化， 再将分析的结果构造查询计划。

看看是如何分析和优化ast 树的:

TreeRewriterResultPtr TreeRewriter::analyzeSelect(
    ASTPtr & query,
    TreeRewriterResult && result,
    const SelectQueryOptions & select_options,
    const std::vector<TableWithColumnNamesAndTypes> & tables_with_columns,
    const Names & required_result_columns,
    std::shared_ptr<TableJoin> table_join) const
{
    auto * select_query = query->as<ASTSelectQuery>();
    if (!select_query)
        throw Exception("Select analyze for not select asts.", ErrorCodes::LOGICAL_ERROR);

    size_t subquery_depth = select_options.subquery_depth;
    bool remove_duplicates = select_options.remove_duplicates;

    const auto & settings = context.getSettingsRef();

    const NameSet & source_columns_set = result.source_columns_set;

    if (table_join)
    {
        result.analyzed_join = table_join;
        result.analyzed_join->resetCollected();
    }
    else /// TODO: remove. For now ExpressionAnalyzer expects some not empty object here
        result.analyzed_join = std::make_shared<TableJoin>();

    if (remove_duplicates)
        renameDuplicatedColumns(select_query); //去除重复行

    if (tables_with_columns.size() > 1)
    {
        result.analyzed_join->columns_from_joined_table = tables_with_columns[1].columns;
        result.analyzed_join->deduplicateAndQualifyColumnNames(
            source_columns_set, tables_with_columns[1].table.getQualifiedNamePrefix());
    }

    translateQualifiedNames(query, *select_query, source_columns_set, tables_with_columns); //验证列名

    /// Optimizes logical expressions.
    LogicalExpressionsOptimizer(select_query, settings.optimize_min_equality_disjunction_chain_length.value).perform(); //优化逻辑执行计划

    normalize(query, result.aliases, settings);

    /// Remove unneeded columns according to 'required_result_columns'.
    /// Leave all selected columns in case of DISTINCT; columns that contain arrayJoin function inside.
    /// Must be after 'normalizeTree' (after expanding aliases, for aliases not get lost)
    ///  and before 'executeScalarSubqueries', 'analyzeAggregation', etc. to avoid excessive calculations.
    removeUnneededColumnsFromSelectClause(select_query, required_result_columns, remove_duplicates); //移除不需要的选择列

    /// Executing scalar subqueries - replacing them with constant values.
    executeScalarSubqueries(query, context, subquery_depth, result.scalars, select_options.only_analyze);// 执行标量子查询，并且用常量替代标量子查询结果

    TreeOptimizer::apply(query, result.aliases, source_columns_set, tables_with_columns, context, result.rewrite_subqueries);

    /// array_join_alias_to_name, array_join_result_to_source.
    getArrayJoinedColumns(query, result, select_query, result.source_columns, source_columns_set);

    setJoinStrictness(*select_query, settings.join_default_strictness, settings.any_join_distinct_right_table_keys,
                        result.analyzed_join->table_join);
    collectJoinedColumns(*result.analyzed_join, *select_query, tables_with_columns, result.aliases);

    result.aggregates = getAggregates(query, *select_query);
    result.collectUsedColumns(query, true);
    result.ast_join = select_query->join();

    if (result.optimize_trivial_count)
        result.optimize_trivial_count = settings.optimize_trivial_count_query &&
            !select_query->where() && !select_query->prewhere() && !select_query->groupBy() && !select_query->having() &&
            !select_query->sampleSize() && !select_query->sampleOffset() && !select_query->final() &&
            (tables_with_columns.size() < 2 || isLeft(result.analyzed_join->kind()));

    return std::make_shared<const TreeRewriterResult>(result);
}

谓词下推： 将where 条件下推到子查询中减少查询的数据量，加速查询的速度
标量替换： 将子查询结果当成常量以减少计算开销

query_analyzer 最主要的是将这些select order by limit 这些组件拼装在一起

最后是InterpreterSelectQuery::executeImpl
这个方法很简单：

executeFetchColumns()
 executeWhere(query_plan, expressions.before_where, expressions.remove_where_filter);
executeAggregation
executeOrder
executeLimitBy

其实就是根据query_plan 分步执行,最后将结构变成BlockIO

最后执行的BlockIO 流会交由Server，server将数据放入缓冲区中，再交由客户端获取缓冲区的结果返回、

本文由 妖言君 创作，采用 知识共享署名4.0 国际许可协议进行许可
本站文章除注明转载/出处外，均为本站原创或翻译，转载前请务必署名
最后编辑时间为: Mar 21, 2022 at 05:00 pm
